EMS DOLORCLAST HIGH POWER LASER

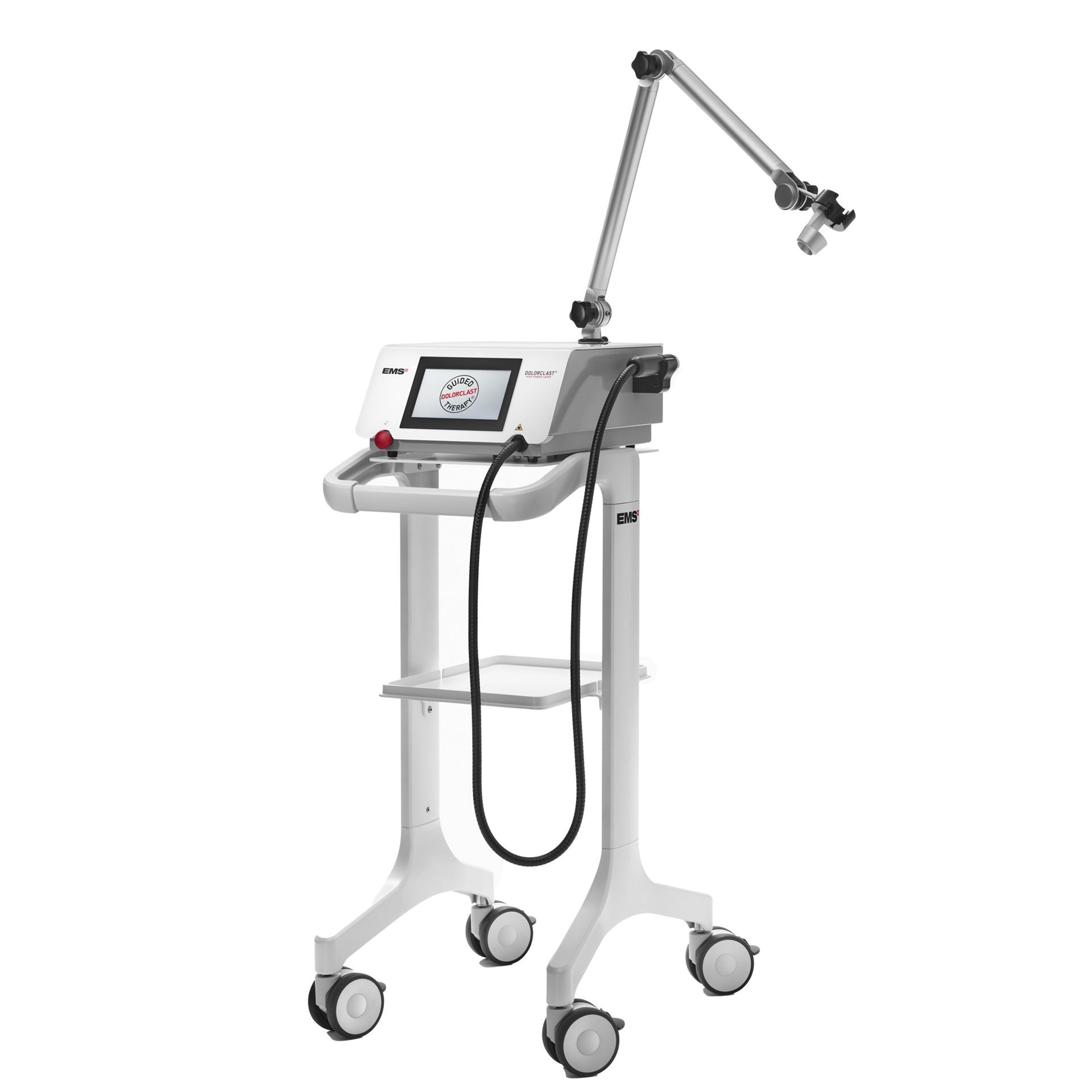

Swiss Dolorclast® High Power Laser Package including cart and laser arm

DolorClast® High Power Laser is designed to address superficial or deep indications and acute pain in only 5 minutes after treatment and reduce inflammation

What makes the DolorClast High Power Laser so unique?

• 905nm wavelength for immediate pain relief, long-term acute inflammation decrease and tissues regeneration
• High peak power of 300W: 15 times more powerful than conventional low power lasers, reaching deep into the tissue
• Short pulse duration of 100ns to keep the treated tissues below the thermal threshold and hence avoid risk of burns

Indications

• Tennis elbow/Golfer's elbow
• Rotator cuff tendinopathy
• Patella tip syndrome
• Upper & lower back pain
• Knee osteoarthritis
• Adhesive capsulitis
• Achilles tendinopathy
• Plantar fasciitis

Technical Features

• WAVELENGTH: 905 nm
• PEAK POWER AT HANDPIECE: 300W
• INSTANTANEOUS PEAK POWER AT HANDPIECE: 375W
• PULSE DURATION: 100ns
• PEAK AVERAGE POWER: 1.35W
• REPETITION RATE:
  • 5 kHz - 10 kHz, with 1 kHz steps
  • 10 Khz -80 kHz, with 2 Khz steps
• PEAK MODULATION
  • 100% up to 40 kHz
  • 75% from 42 to 60 kHz
  • 40% from 62 to 80 kHz
